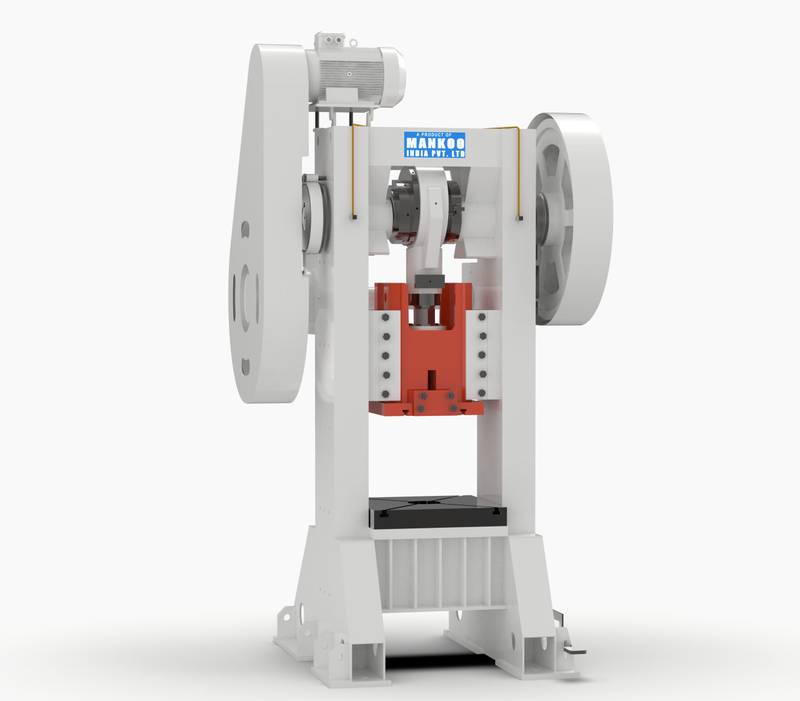

H Frame Mechanical Power Press

H Frame Mechanical Power Press

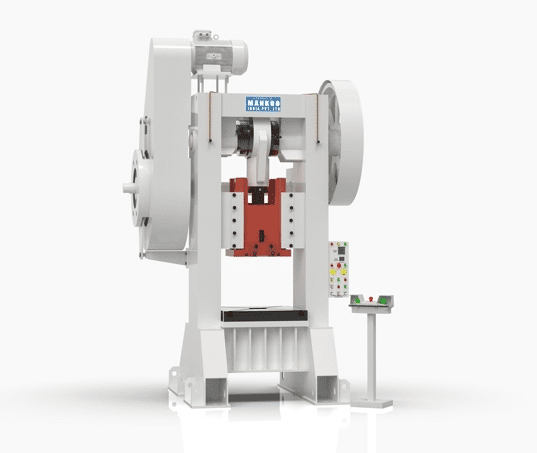

H Frame Mechanical Power Press - Image 2

H Frame Mechanical Power Press

H Frame Pneumatic Press fabricated from IS-2062 graded rolled steel plates. Frame is deeply reinforced and fines machines after stress reliving. The interlocked design put the direct support to frame. This frame is strain free and eliminates welds at load supports. Thus the accuracy of the machine is never disturbed.

An H-frame mechanical power press is a type of power press that uses a frame shaped like the letter H to support the press bed and ram. The ram is the moving part of the press that applies force to the workpiece. The press bed is the stationary part of the press that supports the workpiece.

Download Brochure With Pneumatic Clutch
Download Brochure With Rolling Key Clutch
Category:

Description

Technical Specification

SPECIFICATIONS 30 Tons 50 Tons 80 Tons 100 Tons 150 Tons 200 Tons 250 Tons 300 T 400 T 500 T
Bed Size LR x FB mm 440 x 440 445 x 511 475 x 536 580 x 655 642 x 715 680 x 800 900 x 900 925 x 950 950 x 1000 1000 x 1100
No. of Strokes per Min SPM 50 45 40 40 35 35 30 30 28 28
Stroke Length Adjustable mm 8- 76 8 – 88 8 – 102 8 – 114 10 – 127 20 – 135 20 – 152 20 – 175 200 FIX 200 FIX
Daylight from Bottom Bed mm 291 295 317 415 483 520 550 600 650 700
Shut Height from Bottom Bed mm 215 207 215 301 356 385 398 425 450 500
Slide Adjustment mm 25 28 30 35 35 40 45 50 50 65
Bolster Thickness mm 75 68 72 75 96 102 102 110 120 120
Bed Opening mm 100 100 125 150 150 175 175 200 200 200
Gear Dia mm 533 610 678 796 873 914 1015 1125 1225
Fly Wheel Dia mm 610 678 796 873 1041 1168 1270 1350 1400 1475
Shank Hole Dia mm 31 31 37 44 51 57 67 67 75 75
Floor to Top of Bed mm 762 725 740 751 775 762 813 850 850 850
Motor Power Required H.P 3 / 1440 3 / 1440 5 / 1440 7.5 / 1440 10 / 1440 15 / 1440 20 / 1440 25 / 1440 40 / 1440 50 / 1440
Required Air Pressure Kg / cm2 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5
Capacity Tons 3 5 8 10 15 20 25 30 40 50
Stroke Length mm 45 50 60 65 80 90 100 110 120 130
Air Pressure Kg / cm2 7 7 7 7 7 7 7 7 7 7
