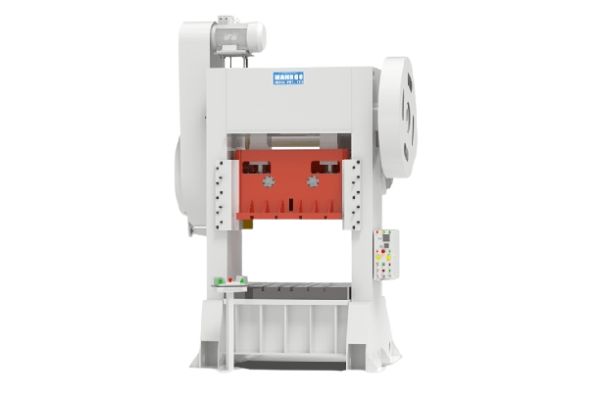

Two Point H Frame Power Press

Two Point H Frame Press Machines

Two Point H Frame Power Press

Our presses are manufactured by experienced professionals in compliance with international quality standards using supreme-grade metal and other related raw materials.

We thoroughly test each press on various parameters to ensure quality. We can also custom-design our presses to meet the specific needs of our customers. We offer our presses in a variety of specifications at competitive prices.

Two Point Frame Press series is a two point, straight side press with a fabricated, unitized frame designed to offer an optimized solution for minimal deflection to.

Download Brochure

Category: Tag:

Description

Technical Specification

Two Point Presses H Frame Presses Crank Type or Crankless Type
Capacity ( Tons) 200 200 200 250 250 250 315 315 315
Bolster area L-RxF-B 1500×1200 1800×1200 2500×1300 1500×1000 1800×1200 2500×1300 1500×1000 1800×1200 2500×1300
Slide area L-RxF-B 1400×800 1700×1000 2400×1100 1400×800 1700×1000 2400×1100 1400×800 1700×1000 2400×1000
Stroke length (fix) 200 200 200 200 200 200 200 225 250
Shut height (SDAU) 450 450 450 500 500 550 550 550 550
Day light (SUAU) 650 650 650 700 700 750 750 775 800
Slide Adjustment (motorised) 100 100 100 110 110 125 125 125 125
No. of slide stroke (SPM) 25 20 20 25 20 25 20 20 20
Main Motor (HP) 25 20 25 25 25 30 30 30 40
Bed Opening mm 100 100 125 150 150 175 175 200
Req.air pressure for pneumatic clutch ( Kg/Cm2) 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5
Capacity (Tons) 20 20 20 25 25 25 30 30 30
Stroke Length 110 110 110 110 110 110 110 125 140
Req. Air pressure (Kg/Cm2) 5 5 5 5 5 5 5 5 5

Technical Specification

Capacity ( Tons) 400 400 400 500 500 630 630 630
Bolster Area 1500×1000 1800×1200 2500×1300 1500×1000 1800×1200 1500×1000 1800×1200 2500×1500
Slide Area 1400×800 1700×1000 2400×1100 1400×800 1700×1000 1400×800 1700×1000 2400×1300
Stroke Fix 200 225 250 200 200 200 225 250
Shut Height 600 600 600 650 650 700 700 700
Day light (SUAU) 650 650 650 700 700 750 750 775 800
Day Light 800 825 850 850 850 850 925 950
Slide Adjustment 125 125 125 150 150 175 175 200
No. Of Slide Stroke 25 20 20 25 25 25 20 20
Main Motor (HP) 40 40 40 50 50 60 60 60
Req.air pressure for pneumatic clutch ( Kg/Cm2) 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5
Capacity (Tons) 40 40 40 50 50 75 75 75
Stroke 110 125 140 110 125 110 125 140
Req. Air pressure
(Kg/Cm2)		 5 5 5 5 5 5 5 5 5
