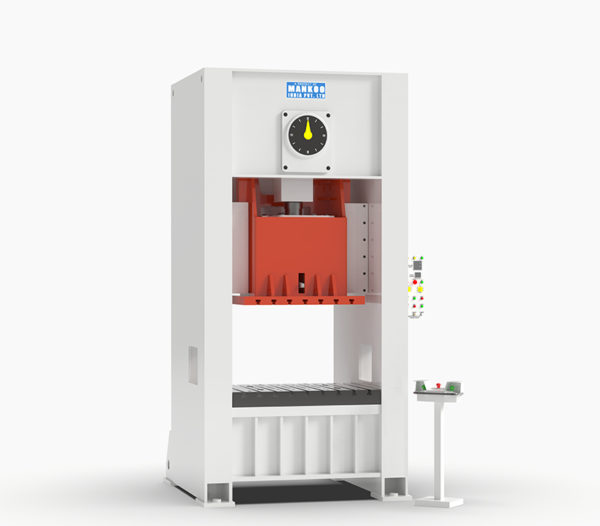

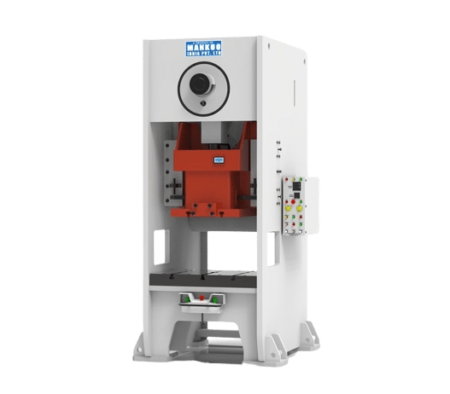

Straight Side Single Crank Power Press

Straight Side Single Crank Power Press

MIXH – 1 SERIES Straight Side Single Crank Power Pressis having and Box Type Steel Welded Construction with Minimum Frame Deflection. The Slide Moves In 4 Point Long Guides & Motorised Slide Adjustment With Die Height Indicator (0.1 MM). It is equipped with a Dual Solenoid Valve For Safety.

A straight side single crank power press is a type of mechanical press that uses a single crank to generate the power to press the material.

Straight-side single crank power presses are typically larger and more expensive than ungeared C-frame power presses, but they are also more powerful.

Straight side single crank power presses are commonly used in a variety of industries, including the automotive industry, electronics industry, and appliance industry.

Download Brochure

Category:

Description

Technical Specification

Model MXH1–110 MXH1–160 MXH1–200 MXH1–250
Capacity 110 160 200 250
Stroke Length mm 125 160 200 220
Stroke Length Variable mm 8–25 8–160 – –
Stroke Per Min SPM 50 40 35 30
Rated Tonnage Point mm 5 6 6 6
Shut Height mm 360 450 500 500
Slide Adjustment mm 90 100 120 120
Slide Area (PxQ ) mm 650×520 720×580 800×680 900×800
Bolster Area (LR x FB) mm 1000×680 1100×760 1250×840 1300×900
Bolster Thickness mm 140 165 180 180
Floor To Bolster mm 900 900 1000 1000
Window in upright mm 650×350 700×400 800×450 800×450
Main Motor HP 10 15 20 25
Motor of Slide Adjustment HPxP 1×4 2×4 2×4 2×4
Overall Space mm 1600×1830 1750×2135 1970×2250 2020×2540
Press Height(w/o mounts) mm 2950 3235 3685 3775
Air Pressure Required Kg/cm 5 5 5 5
Pneumatic Die Cushion Tonnage 10 15 20 25
Strok mm 70 90 110 110
Pad Area mm 480×300 540×340 640×440 640×440
