Shearing Machine

Shearing Machine

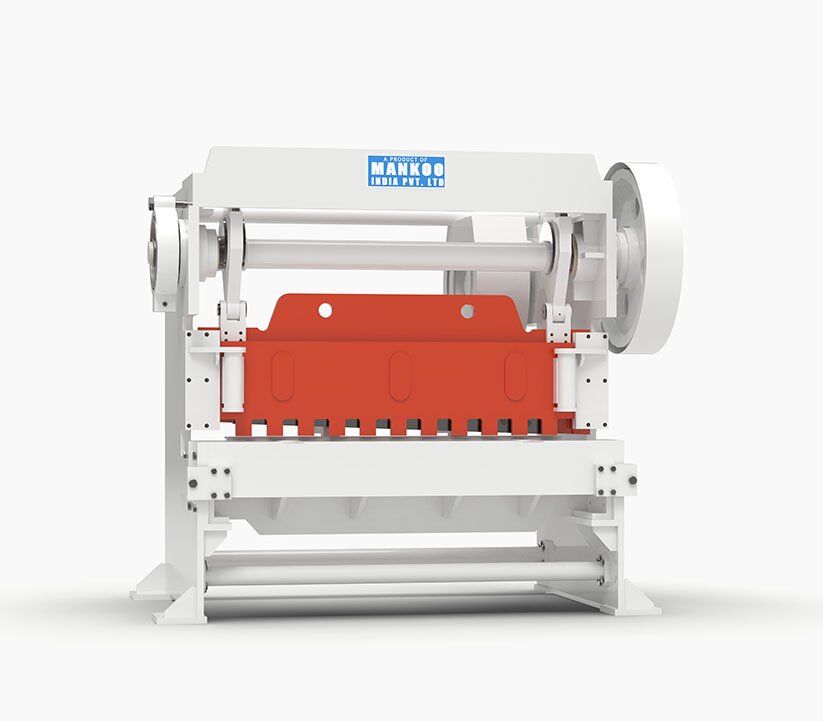

A shearing machine is a machine that cuts or shears material, most commonly sheet metal, by passing it between two opposing blades. We offer Mechanical Over Crank Shearing Machine. The over crank design offers larger capacity machines.

An over crank shearing machine is a type of mechanical shearing machine that uses a crank mechanism to power the cutting blades. The over crank shearing machine provides a smooth and consistent cutting action, which is ideal for cutting relatively thin sheet metal. Over crank shearing machines are typically used for cutting sheet metal up to a thickness of 1/4 inch.

Download Brochure

Category:

Description

Technical Specification

MODEL CUTTING CAP.
IN M.S.LENGTH
x THICKNESS		 DEPTH OF
THROAT		 STROKE PER
MINUTE		 TABLE
HEIGHT		 TABLE
WIDTH		 FRONT
GUAGE		 REAR
GUAGE		 MOTOR
HP/KW		 BLADE LENGTH x
WIDTH x THICK		 LENGTH A BREADTH B HEIGHT C
MI – 2 1525 x 6 80 30 770 450 500 750 7.5/5.6 1525 x 75 x 18 2500 1950 230
MI – 3 2030 x 6 80 30 770 450 600 750 10/7.7 2030 x 75 x 18 3000 1950 2300
MI – 4 2540 x 6 80 30 770 450 600 750 10/7.7 2540 x 75 x 18 3550 1950 2300
MI – 5 3125 x 6 80 30 770 450 600 750 15/11.2 3125 x 75 x 18 4150 1950 2400
MI – 6 1525 x 8 80 30 770 450 600 750 10/7.7 1525 x 75 x 18 2570 1950 2300
MI – 7 2030 x 8 80 25 800 450 600 750 12.5/9.7 2030 x 75 x 18 3150 1950 2500
MI – 8 2540 x 8 80 25 800 450 600 750 15/11.2 2540 x 75 x 18 3670 1950 2500
MI – 9 3125 x 8 80 25 800 450 600 750 20/15 3125 x 90 x 18 4250 1950 2600
MI – 10 2030 x 10 80 25 800 450 600 750 15/11.2 2030 x 90 x 18 3200 1950 2600
MI – 11 2540 x 10 80 25 800 450 600 750 20/15 2540 x 100 x 22 3700 1950 2600
MI – 11 2540 x 10 80 25 800 450 600 750 20/15 2540 x 100 x 22 3700 1950 2600
MI – 12 3125 x 10 80 25 800 450 600 750 25/18.7 3125 x 100 x 22 4300 1950 2600
MI – 13 2030 x 13 80 25 800 450 600 750 20/15 2030 x 100 x 22 3250 1950 2600
MI – 14 2540 x 13 80 25 800 450 600 750 25/18.7 2540 x 100 x 22 3750 1950 2600
MI – 15 3125 x 13 80 25 800 450 600 750 30/22.5 3125 x 100 x 22 4350 1950 2600
