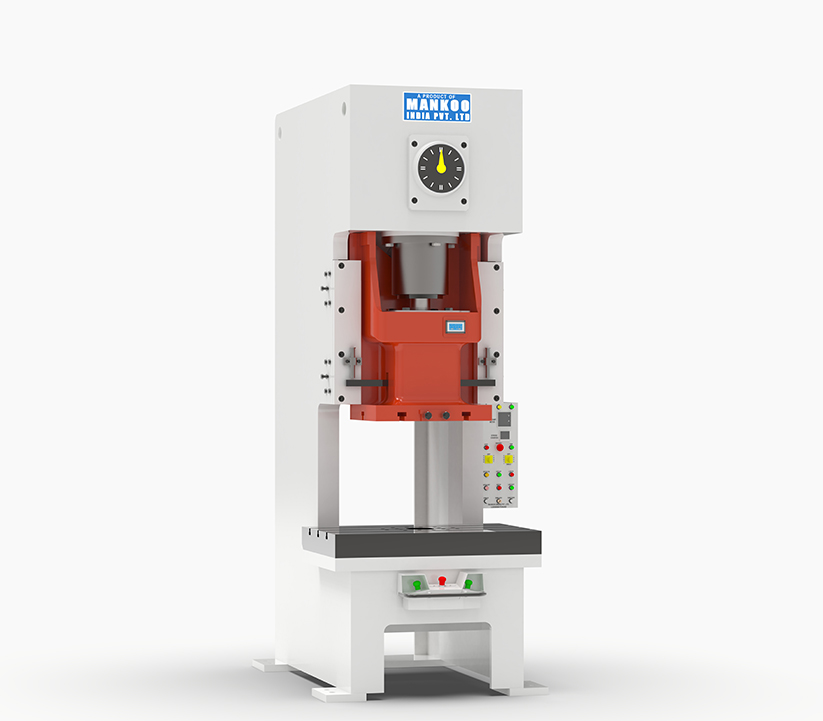

Plunger Guide Link Motion Press are designed for high precision and less die wear. The Plunger Guide Link Motion Press absorbs thrust load from eccentric motion, preventing side load on the gibs. This results in less tool wear and higher part accuracy.

Link Motion drives can improve die life by reducing shock & vibration . The reduced slide velocity in the working portion of the press stroke allows progressive die and vertical link motions to reduce shock and vibration by 30 percent to 70 percent during blanking operations. This reduces both press and auxiliary equipment noise levels and wear.

Download Brochure

Category: Tag:

Description

Technical Specification

Model MILM-80 MILM1–110 MILM-160 MILM-200
Capacity Ton 80 110 160 200
Rated Tonnage Point mm 5 5 6 6
Strokes Length mm 100 110 130 150
Strokes Per Minute SPM 60 50 45 35
Rated Tonnage Point mm 5 6 6 6
Die Height (S. D. A.U.) mm 300 320 350 410
Slide Adjustment mm 80 90 100 110
Bolster Area (LR x FB) mm 650×520 720×580 800×680 900×800
Bolster Area (LR x FB) mm 1000x 460 1150×520 1250×600 1400×680
Bolster Thickness mm 100 120 150 170
Slide Area (LR X FB) mm 560×460 650×520 700×580 850×650
Main Votor HP 10 15 15 15
Slide Adjusting Motor Kw 0.4 0.4 0.5 0.7
Capacity Ton 6.3 8 10 14
Pad Area mm 410×260 500×300 540×350 640×470
Stroke mm 70 80 80 100
